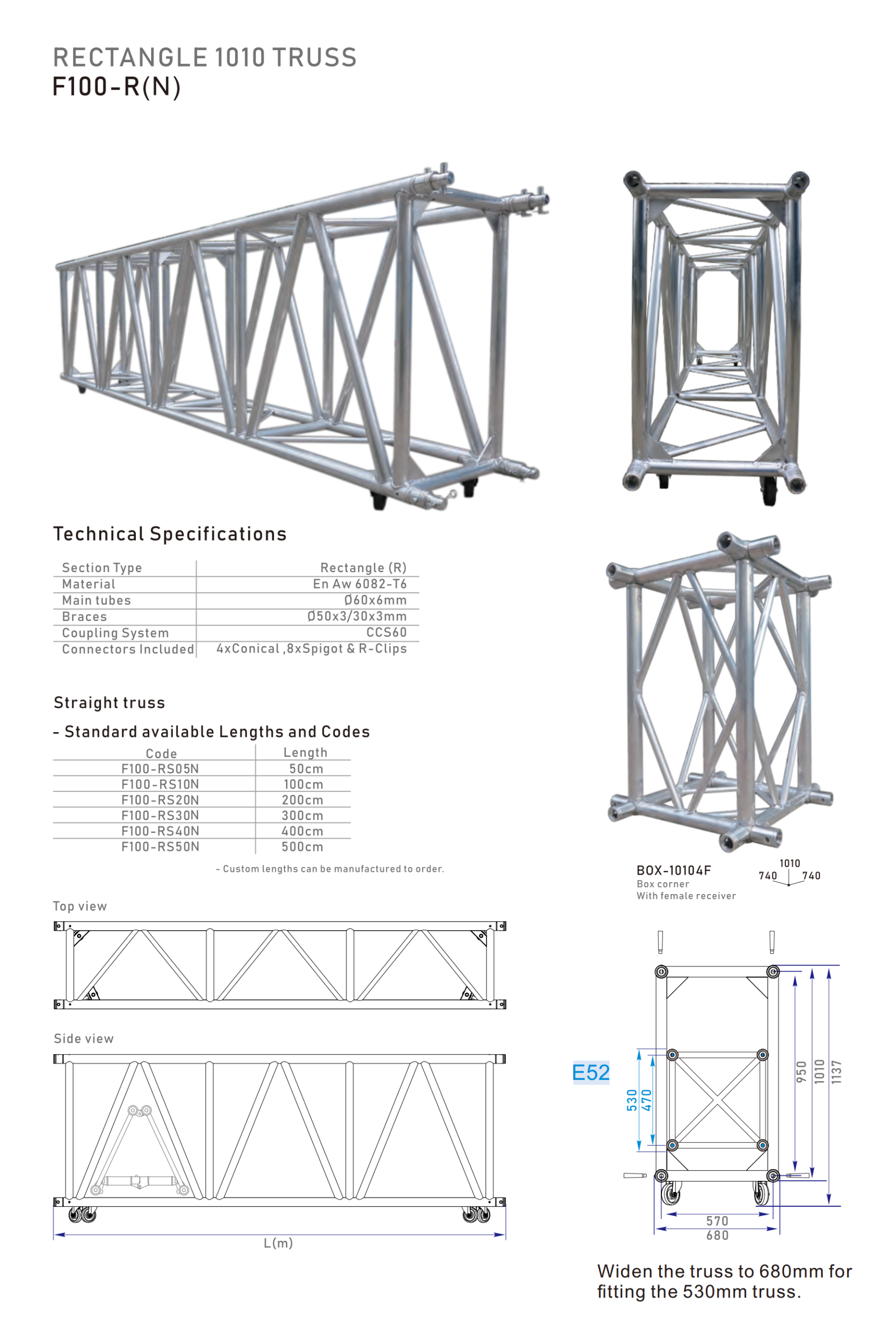

F100-R(N) Series (1010×680)

Rectangle 1010 TRUSS
F100-R(N)

• Section Type: 1010 Rectangle(R)
  Section Size: 1010x680mm
  Standard Available Lengths: 0.5m-5m
  Material: En AW 6082-T6
  Main Tubes: Ø60x6mm
  Braces: Ø50x3mm/Ø30x3mm
  Coupling Systems: CCS60
  Connectors Included: 4xConical, 8xPins & R-Clips
