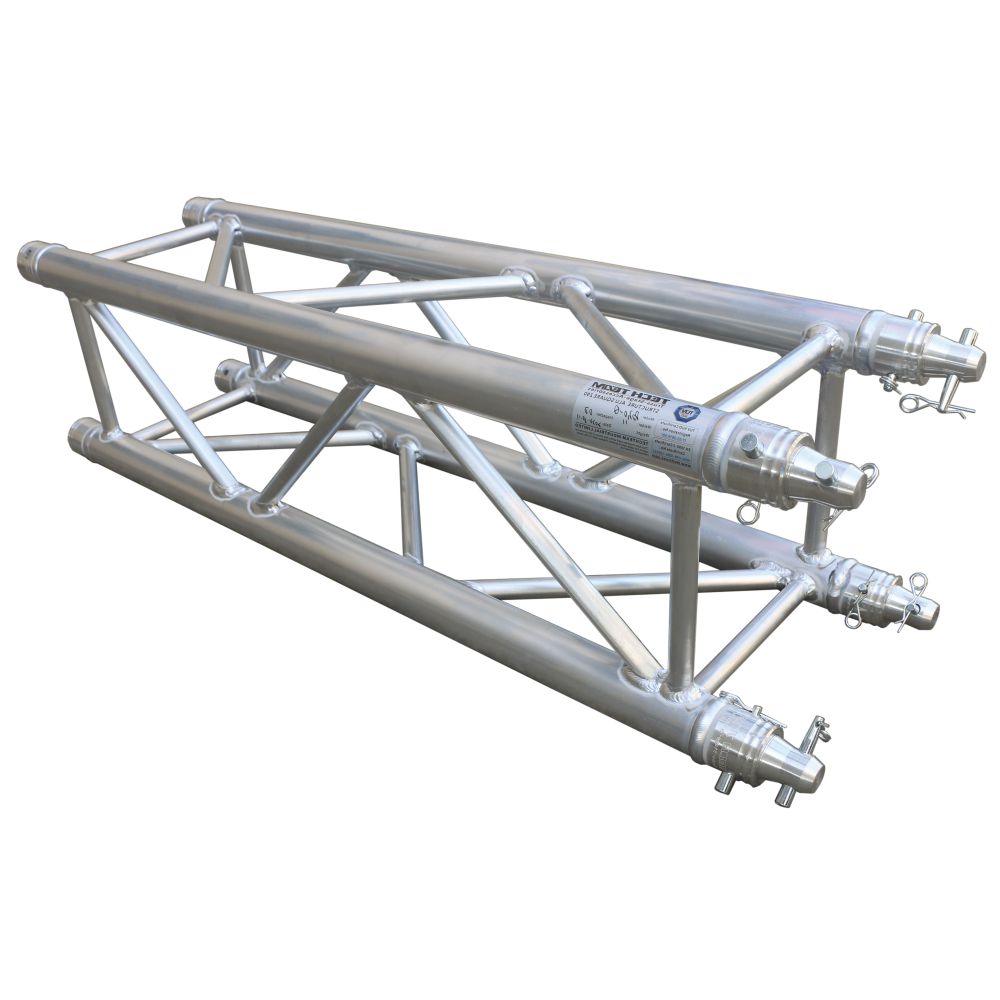

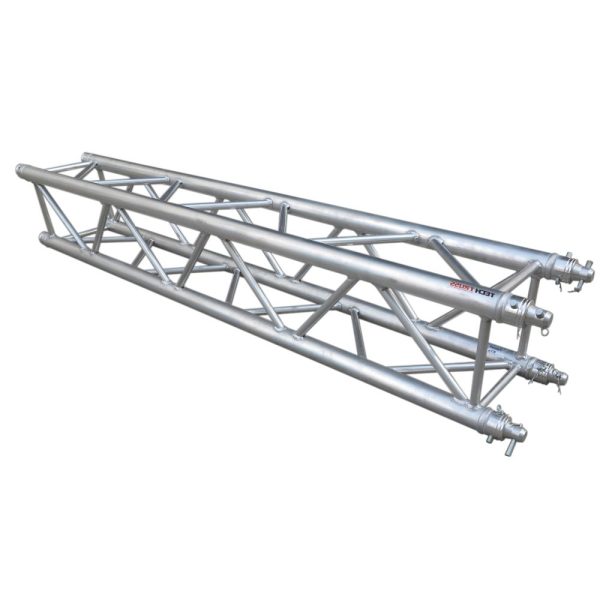

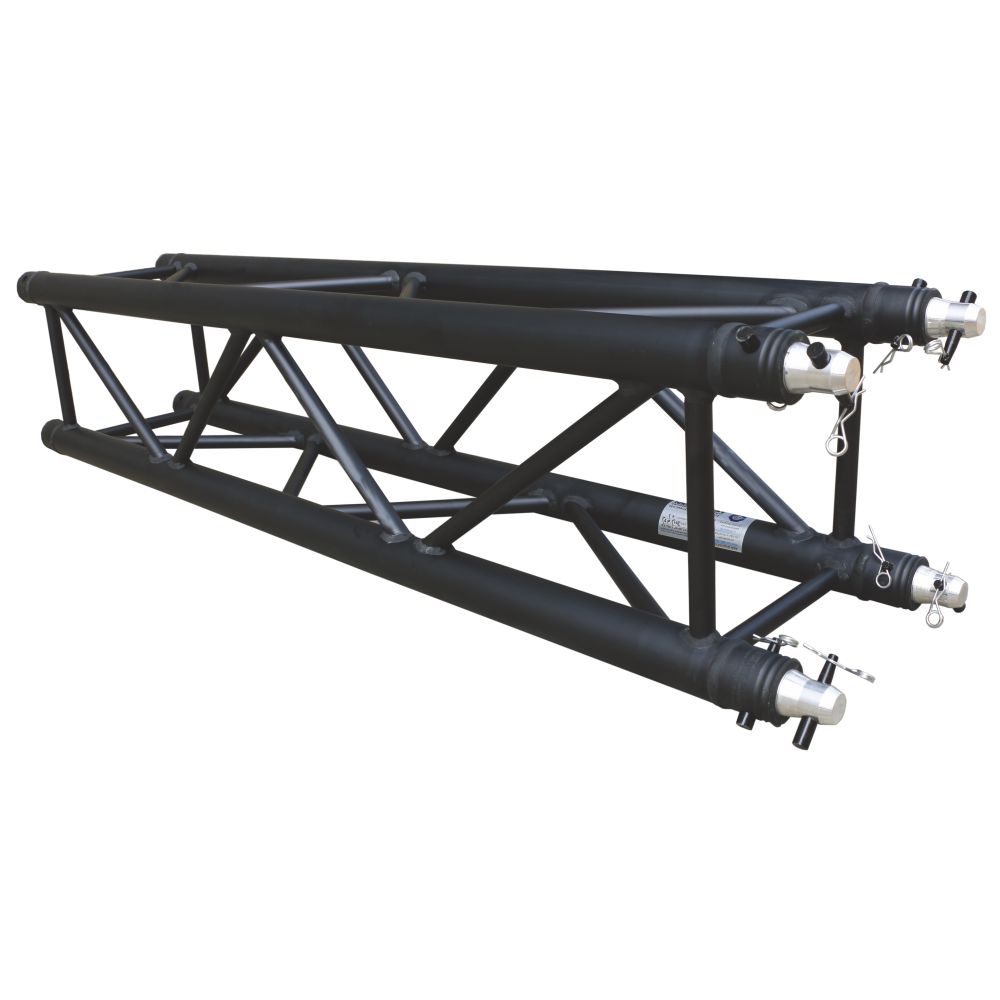

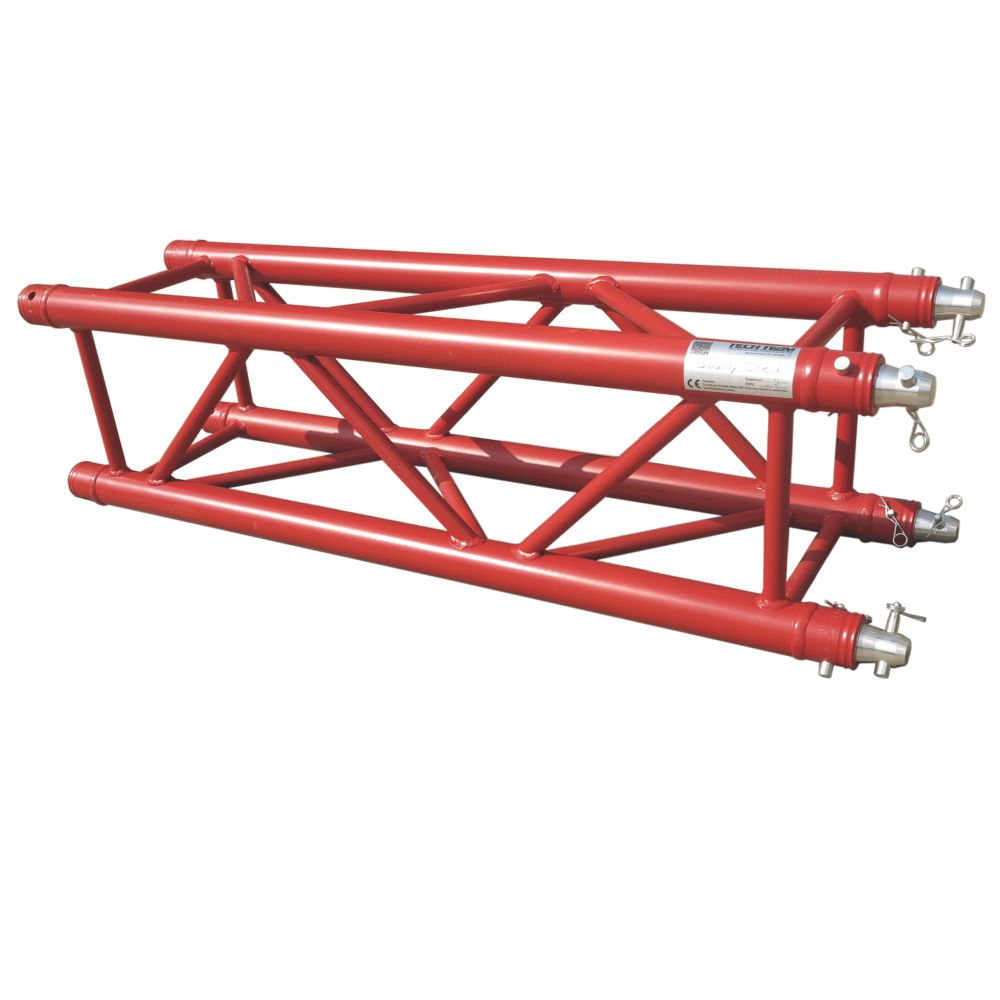

B30-Q Series (290×290,2T)

SQUARE 290 TRUSS
B30-Q Series

• Section Type: 290 Square(Q)
  Section Size: 290x290mm
  Standard available lengths:0.5m-4m
  Material:En AW 6082-T6
  Main Tubes:Ø50x2mm
  Braces:Ø20x2mm
  Coupling Systems:CCS50
  Connectors Included:4xConical,8xPins & R-Clips
